Brake disc EBC for Husqvarna SM 450 510 530 570 610 SMR 630

SKU: MAT-7600028
Category: brake disc

248,20 €

incl. 19% VAT , plus shipping costs (Weltweit)

Choose tax zone / country of delivery

Available immediately
Delivery time: 4 - 5 Workdays (DE - int. shipments may differ)

components are loading ...

Description
Vehicles
Question about item

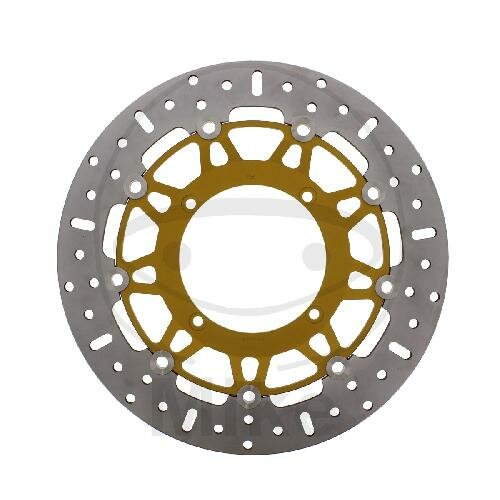

EBC Full Floating Front Brake Discs

The steel used for the new EBC brake discs is a special stainless steel compound with a higher friction effect than that of conventional heat-treated stainless steel brake discs.
With the 10% improvement in the friction effect, the braking force is increased even further.
The weight is further reduced by 5-10% due to the 6-rivet system with lightweight inner ring, which is again an improvement over conventional brake discs.

The brake discs are equipped with EBC's unique and patented SD system, whose square rivets in the recesses of the brake disc allow the outer and inner rings to expand without restriction under the heat generated during braking, without impairing the riveted joint.
Such degradation occurs when the brake disc heats up from heavy braking and the outer ring contacts the (normally round) rivets that separate the outer ring from the inner ring. The new EBC system prevents this problem, which causes 100% of brake disc failures due to disc distortion and vibration.

What is the SD system? It is the new square rivet system from EBC.
This system completely prevents the brake disc from warping, increases the life of the brake disc and improves the durability of the braking effect.

Top Quality - Made in U.K.

Inside diameter:	120.2 mm
Outer diameter:	320 mm
Thickness:	5 mm
Manufacturer:	EBC
Number of holes:	4
Type:	floating
Bolt circle:	135 mm
Offset:	9 mm
Bore diameter:	8.5 mm

Compatible vehicle models

Husqvarna SM 450 R - 2003 - (33 PS, 24 kw)
Husqvarna SM 450 R - 2003 - (46 PS, 34 kw)
Husqvarna SM 450 R - 2004 - H802BD - (33 PS, 24 kw)
Husqvarna SM 450 R - 2004 - H802BD - (46 PS, 34 kw)
Husqvarna SM 450 R - 2005 - H802BD - (33 PS, 24 kw)
Husqvarna SM 450 R - 2005 - H802BD - (46 PS, 34 kw)
Husqvarna SM 450 R - 2006 - H812AB - (50 PS, 37 kw)
Husqvarna SM 450 R Euro2 - 2007 - H812AB - (50 PS, 37 kw)
Husqvarna SM 450 R Euro3 - 2007 - H812AB - (50 PS, 37 kw)
Husqvarna SM 450 R i.e. - 2008 - A202AB - (50 PS, 37 kw)
Husqvarna SM 450 R i.e. - 2009 - A202AB - (50 PS, 37 kw)
Husqvarna SM 450 R i.e. - 2010 - A202AB - (50 PS, 37 kw)
Husqvarna SM 510 R - 2005 - H803CC
Husqvarna SM 510 R - 2006 - H813AB - (58 PS, 43 kw)
Husqvarna SM 510 R Euro2 - 2007 - H813AB - (58 PS, 43 kw)
Husqvarna SM 510 R Euro3 - 2007 - H813AB - (58 PS, 43 kw)
Husqvarna SM 510 R i.e. - 2008 - A203AB - (58 PS, 43 kw)
Husqvarna SM 510 R i.e. - 2009 - A203AB - (58 PS, 43 kw)
Husqvarna SM 510 R i.e. - 2010 - A203AB - (58 PS, 43 kw)
Husqvarna SM 530 RR - 2009 - A224AB
Husqvarna SM 530 RR - 2010 - A224AB
Husqvarna SM 570 R - 2001 - H601AB - (55 PS, 41 kw)
Husqvarna SM 570 R - 2002 - H601AB - (55 PS, 41 kw)
Husqvarna SM 570 R - 2003 - H601AB - (55 PS, 41 kw)
Husqvarna SM 570 R - 2004 - H601AB - (55 PS, 41 kw)
Husqvarna SM 610 i.e. - 2008 - A100AB - (53 PS, 39 kw)
Husqvarna SM 610 i.e. - 2009 - A100AB - (53 PS, 39 kw)
Husqvarna SM 610 i.e. - 2010 - A100AB - (53 PS, 39 kw)
Husqvarna SM 610 S E-Start - 2000 - H701AA - (46/34 PS, 34/25 kw)
Husqvarna SM 610 S E-Start - 2001 - H701AA - (46/34 PS, 34/25 kw)
Husqvarna SM 610 S E-Start - 2002 - H701AA - (46/34 PS, 34/25 kw)
Husqvarna SM 610 S E-Start - 2003 - H701AA - (46/32 PS, 34/24 kw)
Husqvarna SM 610 S E-Start - 2004 - H701AA - (46/32 PS, 34/24 kw)
Husqvarna SM 610 S E-Start - 2005 - A100AB - (53 PS, 39 kw)
Husqvarna SM 610 S E-Start - 2005 - A101AB - (30 PS, 22 kw)
Husqvarna SM 610 S E-Start - 2006 - A100AB - (53 PS, 39 kw)
Husqvarna SM 610 S E-Start - 2006 - A101AB - (30 PS, 22 kw)
Husqvarna SM 610 S i.e. E-Start - 2007 - A101AB - (30 PS, 22 kw)
Husqvarna SM 610 S i.e. E-Start - 2007 - A1AFEKP - (53 PS, 39 kw)
Husqvarna SMR 630 Seel Replica - 2004 - H610AA - (73 PS, 54 kw)
Husqvarna SMR 630 Seel Replica - 2005 - H610AA - (73 PS, 54 kw)
Husqvarna SMR 630 Seel Replica - 2006 - H610AA - (73 PS, 54 kw)
Husqvarna SMR 630 Seel Replica - 2007 - H610AA - (73 PS, 54 kw)
Husqvarna SMR 630 Seel Replica - 2008 - H610AA - (73 PS, 54 kw)
Husqvarna SMS 630 i.e. - 2010 - A401AB - (57 PS, 42 kw)
Husqvarna SMS 630 i.e. - 2010 - A400AB - (34 PS, 25 kw)
Husqvarna SMS 630 i.e. - 2011 - A401AB - (57 PS, 42 kw)
Husqvarna SMS 630 i.e. - 2011 - A400AB - (34 PS, 25 kw)
Husqvarna SMS 630 i.e. - 2012 - A401AB - (57 PS, 42 kw)
Husqvarna SMS 630 i.e. - 2012 - A400AB - (34 PS, 25 kw)
